VANGUARD®

Seating6 Adults
Lounge seatNo
Size
7'3" x 7'3" x 36"
2.20m x 2.20m x .91m
Water Care
FreshWater® Salt System Ready
Pricing$$$$$

Draws a Crowd. Works the Room.

The best seat in the house? That’s every seat in the Vanguard®. Open and spacious, this family-friendly spa fits six with plenty of leg room. A full-body massage awaits you with two seats featuring our patented Moto-Massage® DX jets, plus other targeted jet groups that soothe your neck, shoulders, back and feet.

(Actual colors and product may differ from on screen representation. Please see your local dealer to verify.)

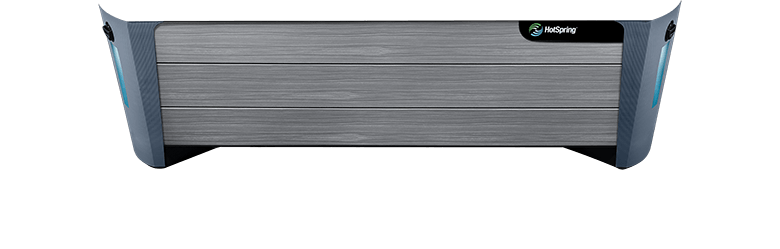

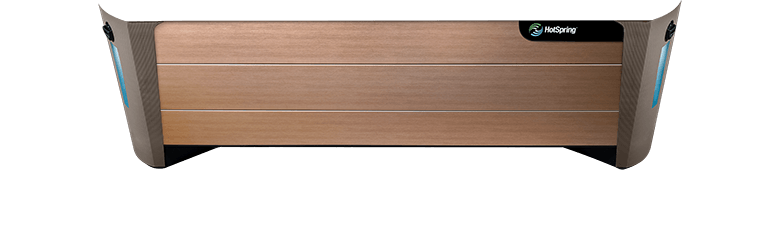

Cabinet

Shell

WIRELESS TOUCHSCREEN CONTROL

For added convenience all Highlife models feature our unique wireless remote control with touchscreen technology.

The most advanced control panel available, it features a full color screen with large icons and intuitive menus that make it easy to adjust spa functions.

Remove the remote from the bartop charging dock and carry into the spa to adjust jets, lighting and even music from your favorite seat, then set the panel in the secondary bartop resting station while you relax.

360° View

Drag the hot tub left or right to see a detailed, 360-degree view of the spa seating, jet placement, spa shell and cabinet. Turn the spa to see the hot tub depth and look closely at the available jets.

VANGUARD JET SYSTEM

The Vanguard Jet System offers an incredible 38 jets that relieve-tension in targeted areas including your back, neck, shoulders and calves.

Hot Spring Spas revolutionized spa industry with this one-of-a-kind moving jet that cascades up and down your back.

This powerful cluster of Directional Precision® jets work together to relieve tension in your back, neck and calves.

The unique SoothingStream jets have seven openings to create a powerful stream that gently relieves tension in your shoulders and upper back.

Soothe sore and stiff lower backs with the powerful, targeted JetStream jet that’s two times as powerful as a standard hydromassage jet.

These rotating jets create a powerful stream of moving water, providing a soothing massage that relieves tension.

These four precision jets work in harmony to melt away tension in your neck and shoulders.

Product Specs

Price$$$$$
Seating Capacity6 Adults
Dimensions
7'3" x 7'3" x 36"
2.20m x 2.20m x .91m
Water Capacity335 gallons/1,275 liters
Weight
695 lbs./315 kg dry
4,540 lbs./2,070 kg filled*
Jet Count
38
Hot Tub Jets
  • 2 Moto-Massage® DX jet (2)
  • 2 SoothingStream® jets
  • 2 JetStream® jets
  • 2 Rotary Hydromassage jets
  • 1 Directional Hydromassage jet
  • 27 Directional Precision® jets
    Lighting System
    • Luminescence® multi-color four-zone
      Water Features
      • BellaFontana® with 3 illuminated arcs of water
        Control System
        • IQ 2020® with wireless remote control
        • 230v/50amp, 60Hz
        • Includes G.F.C.I. protected sub-panel
          Heater
          • No-Fault®, 4000w/230v
            Energy Efficiency
            Certified to the APSP 14 National Standard and the California Energy Commission (CEC) in accordance with California law
            Jet Pump 1
            • Wavemaster® 8000
            • One-speed
            • 2.0 HP Continuous Duty
            • 4.0 HP Breakdown Torque
              Jet Pump 2
              • Wavemaster® 9200
              • Two-speed
              • 2.5 HP Continuous Duty
              • 5.2 HP Breakdown Torque
                Circulation Pump
                • SilentFlo 5000® for quiet continuous filtration
                  Water Care System
                  • FreshWater® Salt System Ready
                    Effective Filtration Area
                    325 sq. ft., top loading Tri-X® filters; 100% no-bypass filtration
                    Hot Tub Cooling System (Optional)CoolZone
                    Vinyl Cover
                    • 3.5" to 2.5" tapered
                    • 2 lb. density foam core with hinge seal
                      Vinyl Cover Colors
                      • Chocolate
                      • Smoke
                        Entertainment systems (optional)
                        • Wireless Sound System
                          Cover Lifters (Optional)CoverCradle II®, CoverCradle®, Lift ‘n Glide®, UpRite®
                          Steps (Optional)
                          • Highlife® Collection Step
                          • Everwood®
                          • Polymer
                            *Includes water and 6 adults weighing 175 lbs. each
                            Export models available in 230v, 50Hz, 1500w heater

                            ACCESSORIES

                            This easy-to-use system eliminates the worry of keeping water clean, clear and sanitized for a full year. With just a little salt in your spa water, the system generates chlorine automatically and keeps water feeling soft without harsh chemical odor. This unique system makes spa ownership easier than ever by removing the guesswork and hassle of water care maintenance.

                            Having an easy way to remove and replace your cover will help you use your hot tub more often and will increase the lifespan of your cover. These top-quality systems are designed specifically for Hot Spring hot tubs to provide improved aesthetics, functionality, and a better overall spa ownership experience.

                            Your Hot Spring® Spas entertainment system lets you restore tired muscles and relax and renew your mind. Tune in to your favorite show or play music from the comfort of your spa. It’s like having a home media center and a wellness retreat in one.

                            Making it easy to climb in and out your spa, Hot Spring spa side stairs are designed to match your spa cabinet.
